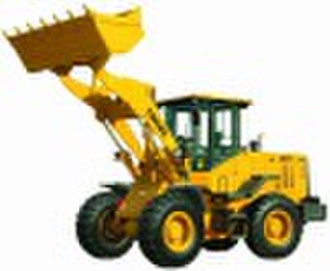

WHEEL LOADER

.FEATURE *Weichai DEUTZ diesel engine, higher power and reliability. *Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance. *Hangzhou Advance Gearbox Group BS428 powershift transmission, high efficiency and easy maintenance. *Gear-shift controlled by flexible shaft makes operation more flexible and reliable. *Single lever pilot control system, comfortable and flexible operation. *Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage; * Air over hydraulic disks on four wheel brakes. *Large space articulated frames make operation and traveling stable. *Working device with automatically levelling ability at high position. *Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability. *Integral, luxury instrument board. *New, luxury cabin. 2- Main technical parameter Item Parameter Item Parameter Capacity 1.8 m3 Turning radius (outside of rear wheel) 5160mm Rated load capacity 3000 kg turning angle 36º each direction Dumping clearance 3000 mm Min. ground clearance 375mm Dumping reach 1100 mm wheel bace 2700mm Bucket lifting time 5.5 S wheel tread 1865mm Total cycle time 10 S Engine TD226B Max. speed 36km/h Engine power 92kW/2300rpm Max break force 120 kN Tyre size 17.5-25 Max. drawing force 90 k N Overall Dimensions 6910*2510*3100mm Max. gradeability 30° Whole operating weight 10200kg
