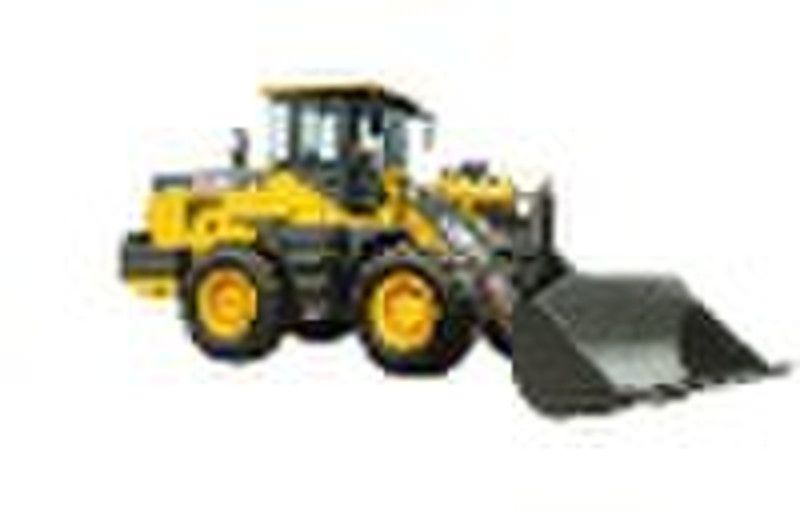

wheel loader with rock bucket

FEATURE The most cost-effective *High-powered engine, large power storage *The new sealed cab with warm-wind equipment is much more comfortable for operation. *Torque-converter and transmission box, the detached structure makes easy maintenance. *Main articulated positions take sealed, lubricated, double dust-proof layers, which owns good durability. *The computer optimization design results in the automatic leveling ability, which can improve the operating efficiency obviously. *The strengthened bucket with additional edge tooth is more wear-resisting and reliable. 2- Main technical parameter Item Parameter Item ParameterCapacity 1.7 m3 Turning radius (outside of rear wheel) 5160mm Rated load capacity 3000 kg turning angle 35º each direction Dumping clearance 3050 mm Min. ground clearance 410mm Dumping reach 1105 mm wheel bace 2600mm Bucket lifting time 5.5 S wheel tread 1800mm Total cycle time 9.5 S Engine YC6B125-T10 Max. speed 36km/h Engine power 92kW/2200rpm Max.breakforce 120 kN Tyre size 17.5-25 Max.drawing force 90 kN Overall Dimensions (length*wide*height) 6990*2420*3000mm Max. gradeability 30° Whole operating weight 9800kg
