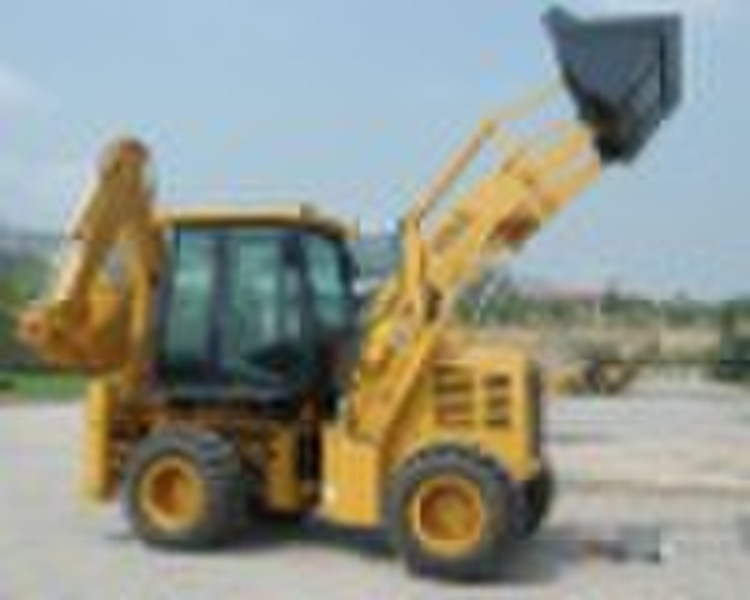

Backhoe Loader WZ30-25

WZ30-25 Backhoe Loader Technological Parameters 1 Length X Width X Height 5900X 2300 X 3769(mm) 2 Cab roof height 2900(mm) 2 Wheel base2250(mm) 3 Track 1640(mm) 4 Min. ground clearance 300(mm) 1 system pressure load hydraulic system 18Mpa dig hydraulic system 20Mpa steering hydraulic system12Mpa 2 system flow 120L/min 3four-wheel drive ,whole hydraulic system 4 total operating weight 7600kg 5 maximum speed 22Km/h 6 maximum gradient capacity 30° 1 loading bucket capacity 1m3 2 rated loading 1800KG 3 maximum articulated height of bucket3400(mm) 4 bucket discharge height 2795(mm) 5 bucket discharge distance 1048(mm) 6 loading lift capacity 25KN 7 bucket hydraulic translation functionyes 8 bucket lift time 6.8s 9 bucket lower time 2.5s 10 bucket discharge time 1.2s 11 maximum tractive force39KN 12 maximum breakout force38KN 1 backacter bucket capacity 0.3m3 2 backacter discharge height 3878(mm) 3 maximum digging depth 4080(mm) 4 maximum digging radius 5688(mm) 5 bucket slewing angle 190° 6 bucket digging capacity 46KN 7 bucket stick digging capacity 31KN
